Ophthalmic knife MVR Knife
MVR knife is designed to create precise microincision in vitrectomy.

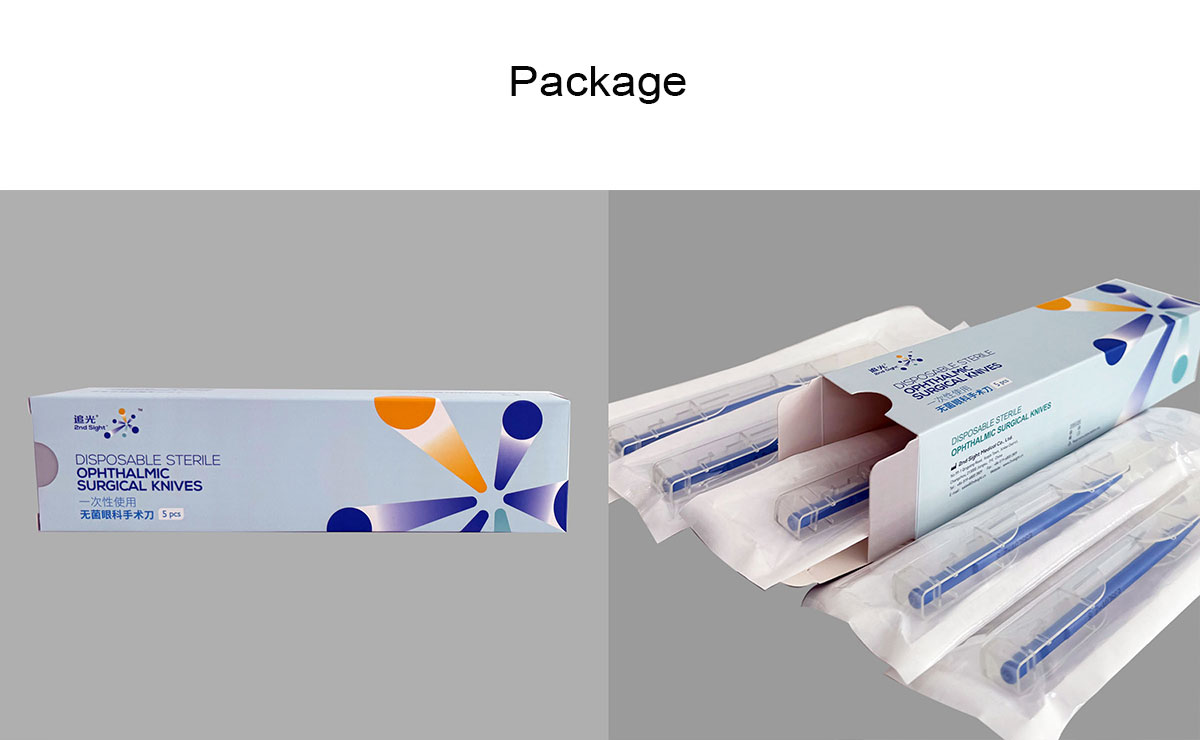

5pcs/Box
Call us: +86-13771700694
| 中文 →MVR knife is designed to create precise microincision in vitrectomy.
5pcs/Box
Benefits
● The highly consistent edge is produced by high precision grinding technology in addition to electrical and chemical treatment.
● Suitable thickness of the blade with unique bevel ensures a micro sharper edge, therefore significantly reducing cutting resistance.
● The exclusive designed blade also decreases insertion resistance.
● Following heat treatment, the stainless steel is extremely durable.
● Standardized production techniques for consistent incision size and minimized risk of tissue damage whilst making the incision.
● True to size, the size of incision is same as the blade width.
● GeeEdge® is not only the sharpest knife but also improves maneuverability.
● GeeEdge®exclusive designed blade create the perfect square incision that performs very well on self-sealing.
● Handle is design for Human factors and ergonomics by taking consideration of surgeon hand position and maneuverability during the surgery.
No. | Model | Angle | Length(mm) | Width W±0.05(mm) | Thickness t(mm) | ||
α±3° | α1±5° | L±3 | L1±4 | ||||
1 | CJY-04-19g | 25° | 45º | 8 | 146 | 1.5 | -- |
2 | CJY-04-20g | 25° | 146 | 1.2 | |||
3 | CJY-04-23g | 32° | 146 | 0.9 | |||
4 | CJY-04-23g(D) | 32° | 146 | 0.7 | |||
5 | CJY-04-24g | 32° | 146 | 0.8 | |||
6 | CJY-04-19g(Z) | 25° | Straight | -- | 150 | 1.5 | |
7 | CJY-04-20g(Z) | 25° | Straight | -- | 150 | 1.2 | |
8 | CJY-04-23g(Z) | 32° | Straight | -- | 154 | 0.9 | |
9 | CJY-04-24g(Z) | 32° | Straight | -- | 154 | 0.8 |
