Ophthalmic knife Slit Knife
Slit knife is designed to create a main incision in cataract surgery. It provides a accurate width to fit the phaco emulsification tip.

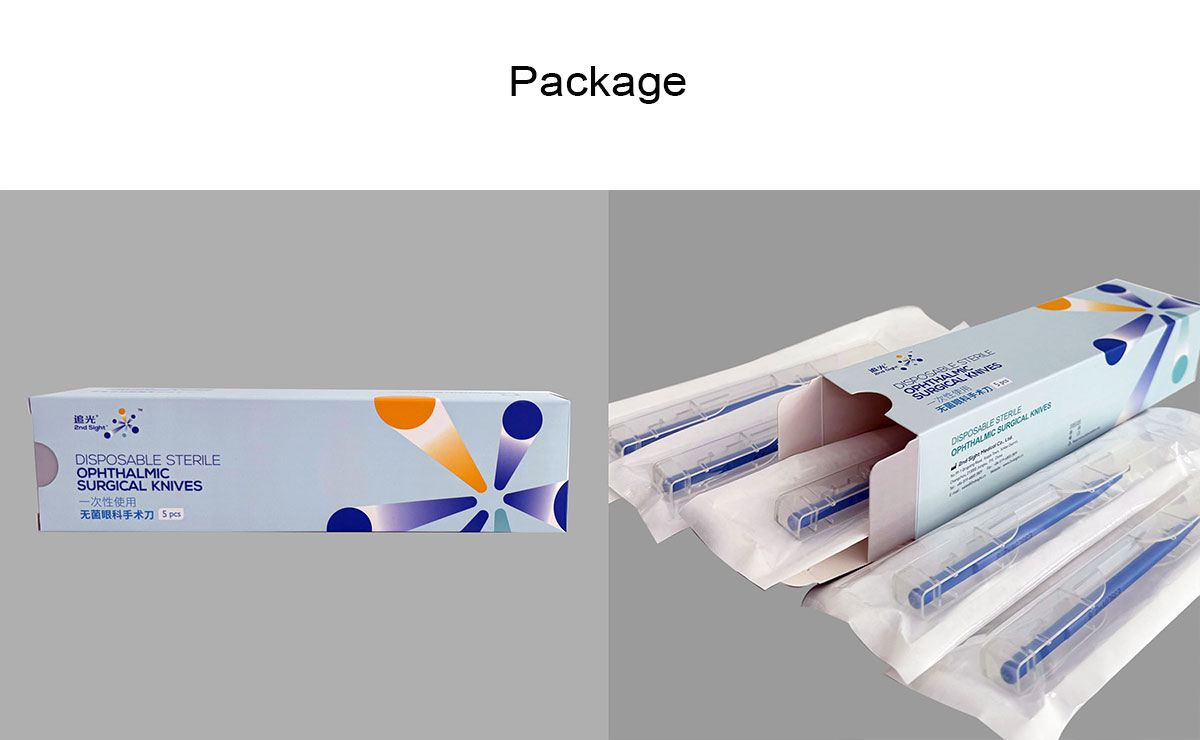

5pcs/Box
Call us: +86-13771700694
| 中文 →Slit knife is designed to create a main incision in cataract surgery. It provides a accurate width to fit the phaco emulsification tip.
5pcs/Box
Benefits
● The highly consistent edge is produced by high precision grinding technology in addition to electrical and chemical treatment.
● Suitable thickness of the blade with unique bevel ensures a micro sharper edge, therefore significantly reducing cutting resistance.
● The exclusive designed blade also decreases insertion resistance.
● Following heat treatment, the stainless steel is extremely durable.
● Standardized production techniques for consistent incision size and minimized risk of tissue damage whilst making the incision.
● True to size, the size of incision is same as the blade width.
● GeeEdge® is not only the sharpest knife but also improves maneuverability.
● GeeEdge®exclusive designed blade create the perfect square incision that performs very well on self-sealing.
● Handle is design for Human factors and ergonomics by taking consideration of surgeon hand position and maneuverability during the surgery.
No. | Model | Angle | Length (mm) | Width W±0.05 (mm) | Thickness t(mm) | ||
α ±3° | α 1±5° | L±3 | L±4 | ||||
1 | CJY-01-1.0 | 38° | 45° | 7 | 132 | 1.0 | 0.12-0.22 |
2 | CJY-01-1.1 | 1.1 | |||||
3 | CJY-01-1.2 | 1.2 | |||||
4 | CJY-01-1.3 | 1.3 | |||||
5 | CJY-01-1.4 | 1.4 | |||||
6 | CJY-01-1.6 | 1.6 | |||||
7 | CJY-01-1.8 | 1.8 | |||||
8 | CJY-01-2.0 | 40° | 45° | 8 | 134 | 2.0 | |
9 | CJY-01-2.1 | 2.1 | |||||
10 | CJY-01-2.2 | 2.2 | |||||
11 | CJY-01-2.3 | 2.3 | |||||
12 | CJY-01-2.4 | 2.4 | |||||
13 | CJY-01-2.5 | 2.5 | |||||
14 | CJY-01-2.6 | 2.6 | |||||
15 | CJY-01-2.7 | 2.7 | |||||
16 | CJY-01-2.75 | 44° | 45° | 9 | 136 | 2.75 | |
17 | CJY-01-2.8 | 2.8 | |||||
18 | CJY-01-2.9 | 2.9 | |||||
19 | CJY-01-3.0 | 3.0 | |||||
20 | CJY-01-3.2 | 3.2 | |||||
21 | CJY-01-3.5 | 3.5 | |||||
22 | CJY-01-1.0(z) | 38° | Straight | -- | 132 | 1.0 | |
23 | CJY-01-2.8(z) | 44° | Straight | -- | 138 | 2.8 | |
24 | CJY-01-3.0(z) | Straight | -- | 3.0 |
