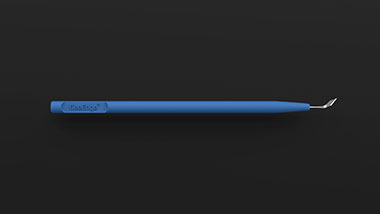

Ophthalmic knife R Slit Knife
R slit knife is designed to widen the initial incision to facilitate lens insertion.

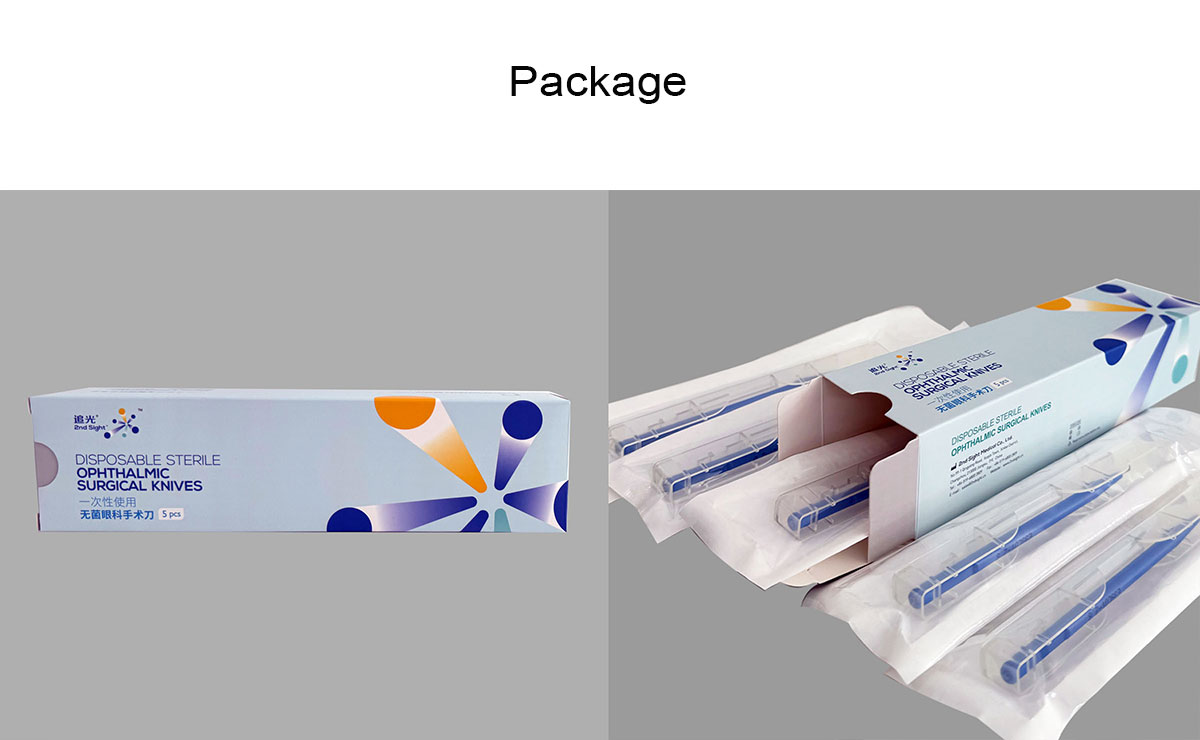

5pcs/Box
Call us: +86-13771700694
| 中文 →
R slit knife is designed to widen the initial incision to facilitate lens insertion.
5pcs/Box
Benefits
● The highly consistent edge is produced by high precision grinding technology in addition to electrical and chemical treatment.
● Suitable thickness of the blade with unique bevel ensures a micro sharper edge, therefore significantly reducing cutting resistance.
● The exclusive designed blade also decreases insertion resistance.
● Following heat treatment, the stainless steel is extremely durable.
● Standardized production techniques for consistent incision size and minimized risk of tissue damage whilst making the incision.
● True to size, the size of incision is same as the blade width.
● GeeEdge® is not only the sharpest knife but also improves maneuverability.
● GeeEdge®exclusive designed blade create the perfect square incision that performs very well on self-sealing.
● Handle is design for Human factors and ergonomics by taking consideration of surgeon hand position and maneuverability during the surgery.
| No. | Model | Angle | Length(mm) | Width | Thickness t(mm) | ||
| α | α1±5° | L±3 | L1±4 | ||||
| 1 | CJY-03-2.6 | -- | 45º | 9 | 131 | 2.6 | 0.12-0.22 |
| 2 | CJY-03-3.2 | 3.2 | |||||
| 3 | CJY-03-3.5 | 3.5 | |||||
| 4 | CJY-03-3.7 | 3.7 | |||||
| 5 | CJY-03-4.1 | 4.1 | |||||
| 6 | CJY-03-5.2 | 5.2 | |||||
| 7 | CJY-03-5.5 | 5.5 | |||||
